Description
Key Features:
-
Ultralight motor – only 6.9g including cable
-
Smooth and efficient 9N12P configuration
-
Ideal for 2.5”–3” FPV drones. Cinewhoops. and toothpicks
-
1.5mm shaft for standard micro prop mounting
-
Built for 2S–3S LiPo setups
-
Available in 5000KV for balanced control and 6500KV for high-speed builds
Technical Specifications:
| Specification | F1204 5000KV | F1204 6500KV |
|---|---|---|
| Configuration | 9N12P | 9N12P |
| Motor Dimensions | Φ15.5 × 15.6 mm | Φ15.5 × 15.6 mm |
| Shaft Diameter | 1.5 mm | 1.5 mm |
| Weight (Incl. Cable) | 6.9 g | 6.9 g |
| Weight (Excl. Cable) | 6.1 g | 6.1 g |
| Input Voltage | 2–3S LiPo | 2–3S LiPo |
| Max Power (60s) | 72 W | 60 W |
| Peak Current (60s) | 6 A | 7 A |
| Idle Current (10V) | 0.7 A | 0.9 A |
| Internal Resistance | 240 mΩ | 140 mΩ |
| Wire Lead | 24AWG Silicone. 100 mm | 24AWG Silicone. 100 mm |
Recommended Applications:
-
2.5–3 inch toothpick racing drones
-
Lightweight Cinewhoop micro drones
-
Custom FPV builds requiring weight efficiency
-
Ideal for tight freestyle or precision flying
Package Includes:
-
1 × T-MOTOR F1204 5000KV or 6500KV Brushless Motor

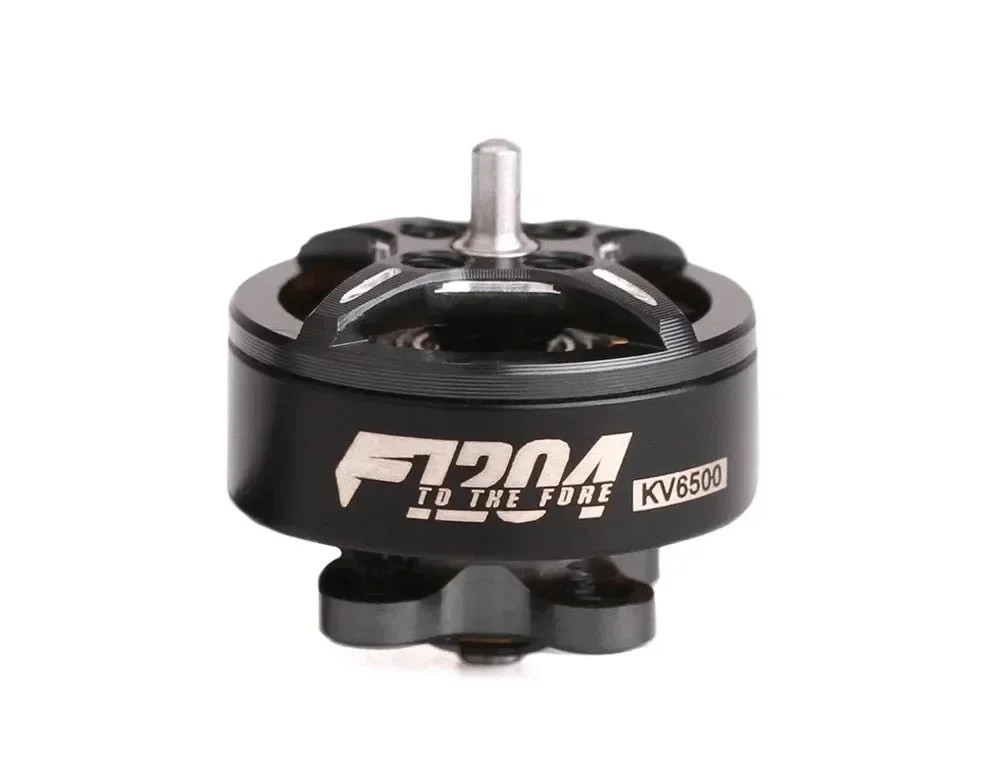

Ultralight T-MOTOR designed for toothpick and whoops. Compact. efficient motors with visible copper windings and black casing.
T-MOTOR product offers high efficiency. better cooling. fast response. sleek design. and robust construction for optimal performance.
A motor has dimensions Φ15.5*15.6mm. Specifications include KV 5000. internal resistance 240mΩ. shaft diameter 1.5mm. weight (incl. cable) 6.9g. rated voltage (Lipo) 2~3S. and max. power (60s) 72W. The lead is 24# black 100mm. idle current (10V) 0.7A. peak current (60s) 6A. Weight (excl. cable) is 6.1g. Configuration is 9N12P. Diagrams show top and side views with detailed measurements.
T-MOTOR KV6500 specifications: 9N12P configuration. 1.5mm shaft. 6.9g weight. 60W max power. Test report includes thrust. voltage. current. RPM. power. efficiency at various throttle levels. Operating temperature: 45°C.
T-MOTOR HQ3020 and F1204 KV5000 data with GF2540 propeller. Details: throttle. thrust. voltage. current. RPM. power. efficiency. temperature at various conditions. Ambient: 8°C.
T-MOTOR F1204 KV6500 motor specifications at various throttle percentages. Includes motor temperature. RPM. current. voltage. and power data. Package contains one motor and a parts bag. Contact online for missing items.
