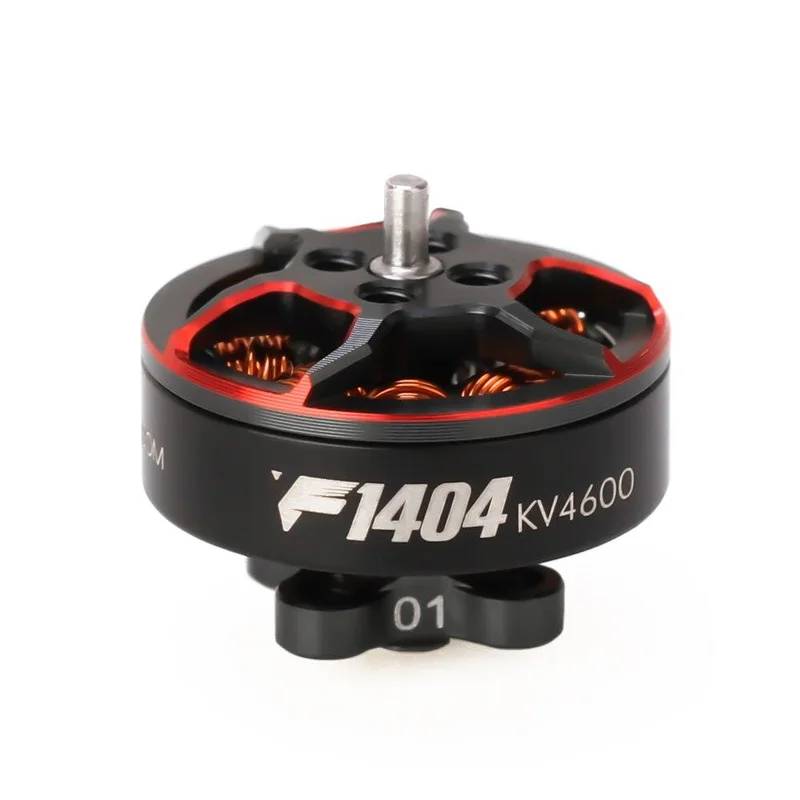

T-motor F1404 KV3800 KV4600 3-4S Brushless Outrunner Motor  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 18+

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: F1404

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

FI40A V3800 KV4ooo SUITABLE FOR 2.5-4 FPV BUILD. BRING YOU A POWERFUL FLIGHT JOTORHOBBY.COM ‘Kv46OO “FH04

F140A 4guuKU IS SPECIALLY BUILT FOR SPEC RACE (TRAINING RACING BUILD) STABLE POWER F1M ‘Kv4600’

The F1404 KV3800 motor is suitable for 3-inch long-range flying applications. particularly those featuring ultra-light designs. due to its higher efficiency.

Technical Specifications:- Internal Resistance: 138 milliohms- Lead Wire: 24 AWG. 150 mm in length- Configuration: 9N12P (nine-nines-twelve)- Shaft Diameter: 1.5 mm- Rated Voltage (Lipo): 3.45V to 4.6V- Idle Current (1 Ohm): 0.6A- Peak Current (60 seconds): 20A- Maximum Power (6 seconds): 316W- Test Item: Kv4600- Weight (including cable): 9.34 grams- Motor Dimensions: 17.9 mm x 16.6 mm- Internal Resistance: 195 milliohms
