Description

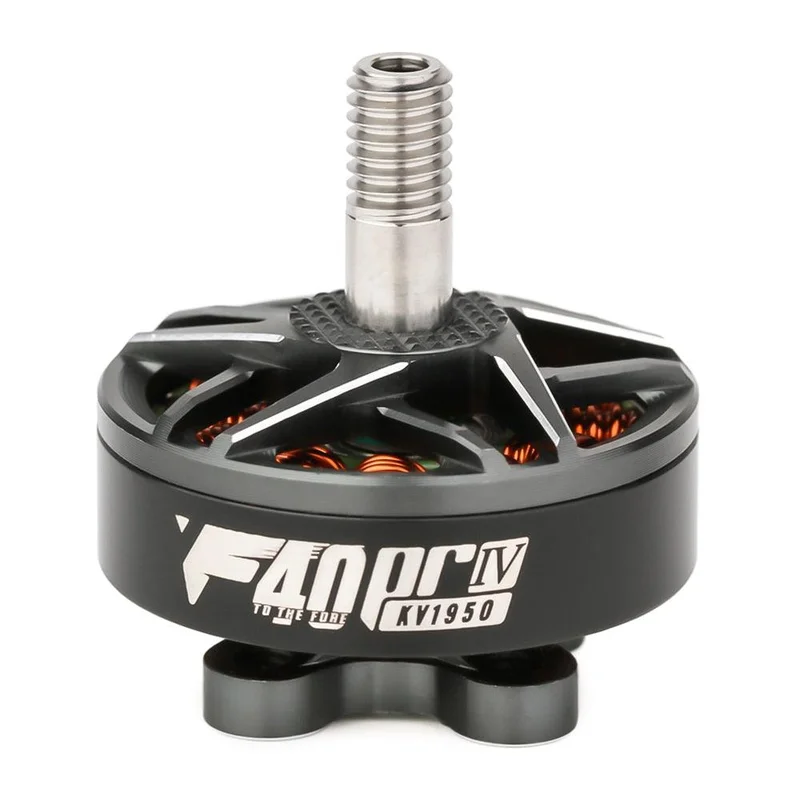

T-motor F40PRO IV KV1750 KV1950 KV2400 Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Material: Metal

Brand Name: T-MOTOR

There are Grey.Blue and Red colors to choose. and we will send you color randomly.You can also leave us a message which color you want.

FAOPRO IV KV1950 Throttle: 100% Volt: 23.53V 1902g T5150 Tri-blade Current: 43.03A RPM: 30869RPM Max Thrust F4SA ESC Power: 1012.67W Power Ratio: 1.88 96*C after 100% throttle running 1 min (Ambient Temp: 30*C)

ESC power output: 666.32 watts. with a power ratio of 2.17:1; after a 1-minute run at full throttle (ambient temperature: 30°C). the motor reached an operating temperature of approximately 97 degrees Celsius.

Customized silicone wire features enhanced durability through its innovative design. including an interlaced rib pattern and specialized base design. The reduced shaft height of just 12mm also contributes to this improved durability.

Product Drawing 29.8 027.9 016 4-M3 Specifications Test Item KV1950 Weight (Incl. Cable) 30.8g Motor Dimensions 027.9*29.8mm Interna Resistance 65mn Lead 20#AWG 150mm Configuration 12N14P Shaft Diameter 4mm Rated Voltage(Lipo) 4-65 Idle Current(1 OV) 1.34 Peak Current(60s)
