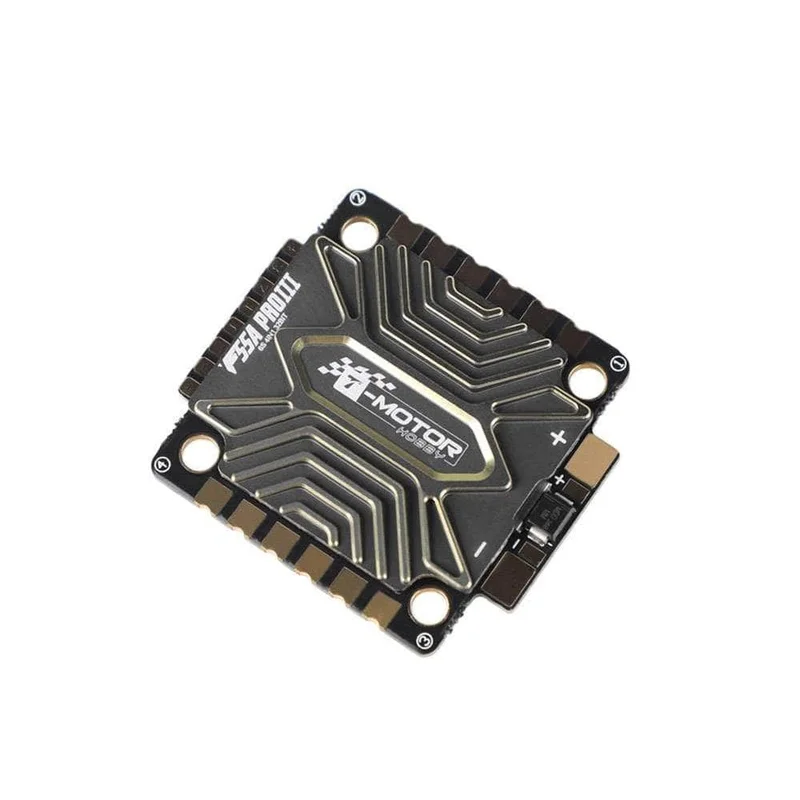

T-Motor F55A Pro III 55A 3-8S AM32 4-in-1 ESC – 30×30

Description

Experience superior performance with the T-Motor F55A PRO III 4-in-1 ESC. Featuring TPHR8504 MOSFETs and the STM32G071 microcontroller, and AM32 Firmware – it’s ready for high-intensity flights. Supporting 3-8S it’s designed for optimal motor compatibility, while its dual heat sink ensures effective cooling. The F55A Pro III 4-in-1 ESC is ready keep your drones airborne.

Check out all our 30×30 ESCs  as well as our T-Motor products!

Features

• TPHR8504 MOSFETs
•  STM32G071 MCU
• Adjustable PWM Frequency Range
• Efficient Heat Management
• Wide Voltage Support
• Top-Tier Performance
• Enhanced Durability
• AM32 Firmware

Specifications

• Mounting Hole: 30.5 x 30.5mm/M3
• Peak Current: 65A (10 Seconds)
• Amperage Meter: 200
• Size: 44x40x7.5mm
• Telemetry: Support
• Voltage: 3S-8S Lipo
• Firmware: AM32
• Weight: 17.8g
• Current: 55A
• BEC: No

Includes

• 1x T-Motor F55A Pro III 55A 3-8S AM32 4-in-1 ESC – 30×30
• 1x 61mm Double-Ended SH1.0-10P Silicone Cable
• 1x 61mm Single Head SH1.0-10P Silicone Cable
• 4x High Yellow Shock Absorbing Washer
• 4x Low Yellow Shock Absorbing Washer
• 1x Capacitor
