Description
Overview

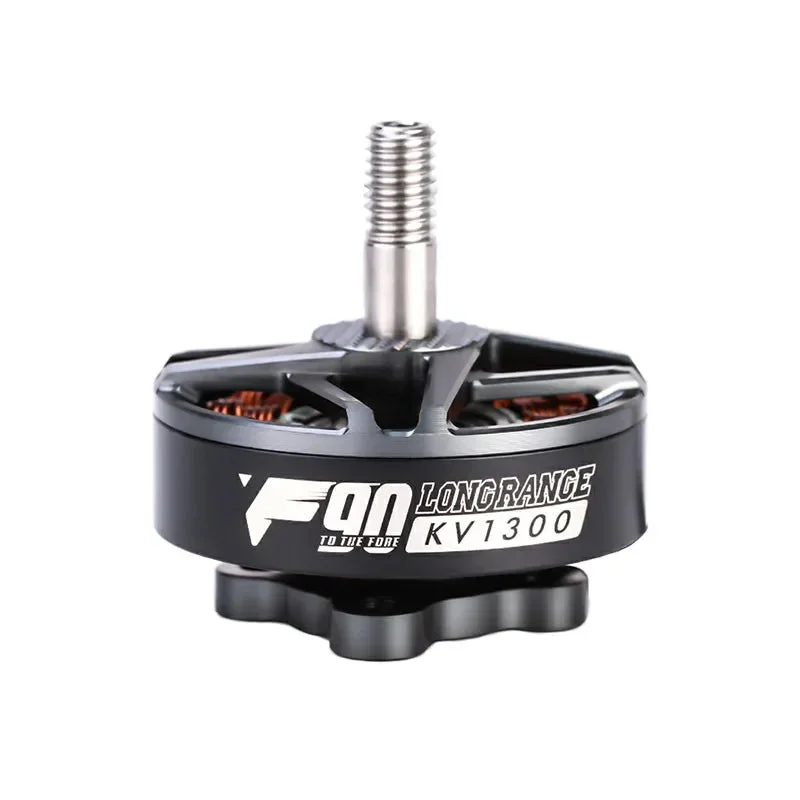

The T-MOTOR F90 2806.5 is purpose-built for long range. freestyle. and cinematic FPV drones. With a robust 2806.5 stator and available in 1300KV. 1500KV. and 1950KV options. this motor delivers high torque. smooth response. and consistent output on 5-6S LiPo setups. Whether you’re building a 7-inch cruiser or a powerful 5-inch cinewhoop. the F90 series offers the flexibility and thrust you need for extended and stable flight.
Specifications
| Model | KV | Voltage | Max Power (60s) | Peak Current (60s) | Idle Current (10V) | Internal Resistance | Weight (with wire) |
|---|---|---|---|---|---|---|---|
| F90-1300KV | 1300 | 5-6S | 1059W | 45.1A | 0.95A | 76mΩ | 46.6g |
| F90-1500KV | 1500 | 5-6S | 1089W | 47.1A | 1.2A | 62mΩ | 46.7g |
| F90-1950KV | 1950 | 5-6S | 1302W | 53.6A | 1.5A | 45mΩ | 46.6g |
Common Specs:
-
Motor Size: Φ33.4 × 34.7mm
-
Shaft Diameter: 4mm
-
Lead Wire: 20AWG 230mm
-
Configuration: 12N14P
-
Mounting Pattern: 19×19mm (M3)
Performance Highlights
F90 1300KV with GF51466-3 5S prop:
-
Max thrust: 1784g . All rights reserved.
