Description

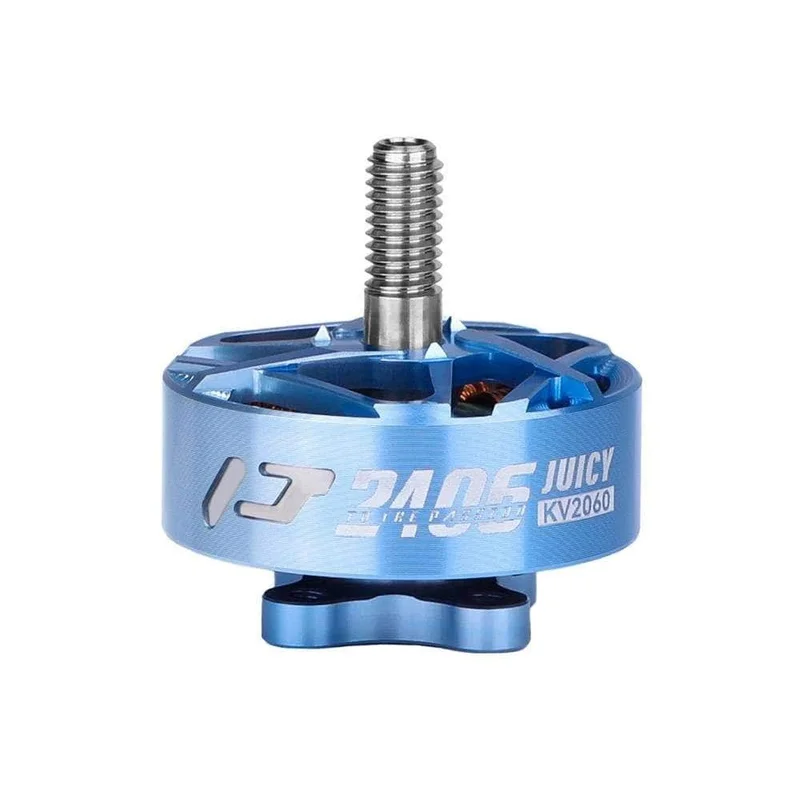

The T-Motor Pacer V4 P2406 Motor packed with power and tuned for precision. Freestyle pilots rejoice! With a 2060KV, nickel-plated magnets, and smooth bearings, it performs in any condition. Lightweight but provides 1993g of thrust, making it perfect for pushing limits or mastering freestyle.
Check out our vast motor selection and all our T-Motor products!
Features
- Lightweight Construction
- Premium Components
- Freestyle Optimized
- Durable Design
Specifications
- Coil Insulation Test: 500V withstand voltage (5s)
- Waterproof and Dustproof Class: Standard
- Packing Size: 61mm x 41.5mm x 32.5mm
- Prop Adapter Shaft Thread: M5 x 10mm
- Dynamic Balance Requirements: <5mg
- Motor Dimensions: 30.2mm x 31mm
- Magnet: Nickel-plated arc magnet
- Lead Wires: 20AWG x 150mm
- Bearings: Imported 684ZZ
- Screw Diameter: 16-M3-4
- Configuration: 12N14P
- Shaft Diameter: 5mm
- Packing Weight: 50g
TECHNICAL
- Weight (including cable): 36g
- Internal Resistance: 45mΩ
- Rated Voltage (LiPo): 24V
- Idle Current (10V): 1.9A
- Max Power (1s): 1116W
- Peak Current (1s): 48A
- Max Thrust: 1993g
- KV: 2060
Includes
- 1x T-Motor Pacer V4 P2406 Juicy 2406 Motor – 2060KV
- 1x Hardware Kit
