Description

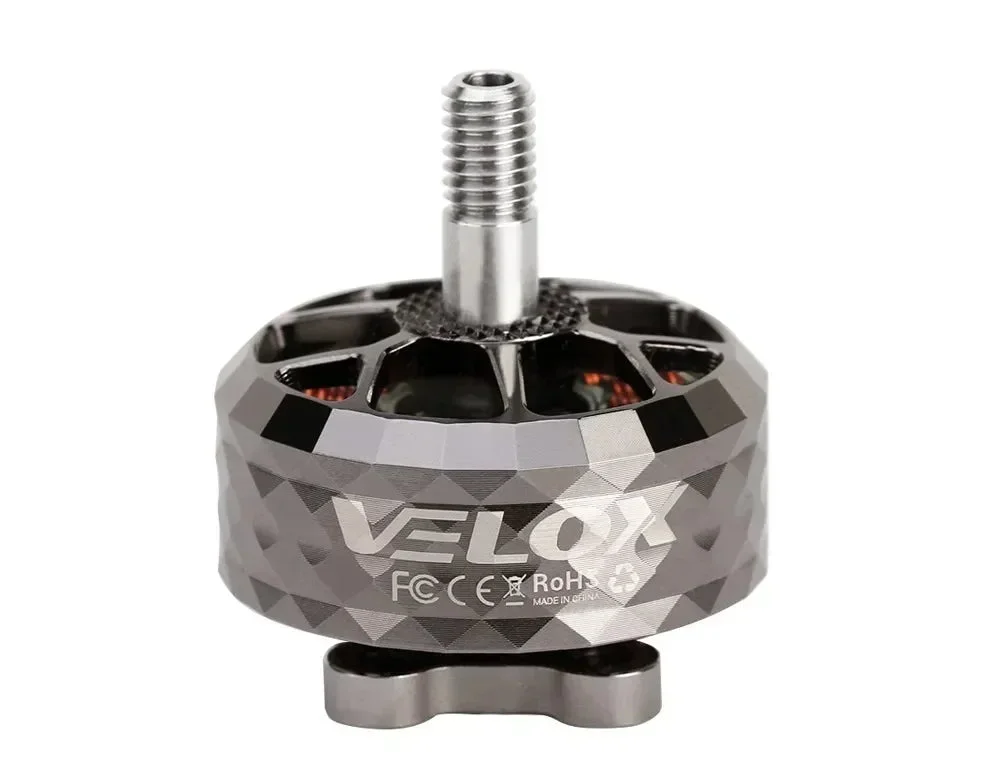

The T-Motor VELOCE V2208 V2 Brushless Motor is purpose-built for 5-inch FPV racing and freestyle drones. offering a perfect balance of power. responsiveness. and efficiency. Available in 1750KV. 1950KV. and 2450KV versions. this motor is compatible with 4S to 6S LiPo batteries and features a robust 4mm titanium alloy shaft for exceptional durability and lightweight performance. The sleek one-piece bell design and vibrant anodized finishes add both functionality and visual flair to your build.
Key Features
-
4mm Titanium Alloy Shaft: Lightweight yet strong. resists bending and wear from crashes.
-
NSK 9x4x4mm Japanese Bearings: High-precision. smooth rotation. extended motor life.
-
N52H Curved Arc Magnets: Increased magnetic flux for enhanced torque and punch.
-
One-Piece Bell Design: Stronger and more impact-resistant structure.
-
Dynamic Balancing: Each motor is precisely balanced for stable and jitter-free performance.
-
Motor Wire Protection: Designed to minimize wear and interference during flight.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VELOCE V2208 V2 |
| KV Rating | 1750KV / 1950KV / 2450KV |
| Configuration | 12N14P |
| Input Voltage | 4S – 6S LiPo |
| Shaft Diameter | 4mm (Titanium Alloy) |
| Motor Dimensions | Φ27.6mm x 31.95mm |
| Weight (w/ Cable) | ~37.2g |
| Wire Spec | 20AWG. 150mm |
| Mounting Pattern | 16x16mm (M3 bolts) |
| Bearings | NSK 9x4x4mm |
Recommended Usage
-
Propeller Compatibility: Optimized for 5-inch FPV propellers
-
Drone Type: 5” freestyle. racing. cinematic builds
-
Use Case: Suitable for both aggressive acrobatics and cinematic cruising
Package Includes
-
1 x T-Motor VELOX V2208 V2 Motor (KV Optional)
VELOCE SERIES: Solid while pretty. New VeloX motors in copper. blue. and black designs.
Velox series motor offers exquisite appearance and excellent performance for pilots to challenge limits and enjoy better flights.
T-Motor has a one-piece bell. titanium shaft. N52 magnet. and lighter weight for durability and power.
T-Motor in three colors. sizes 2306.5-2208. for flying needs.
T-Motor specifications: 12N14P configuration. 27.6*31.95mm dimensions. 4mm shaft. 36.9-37.2g weight. 6S voltage. 796-980W power. 65-52mΩ resistance. 1.35-2.1A idle current. 34.5-43.2A peak current.
Test report for T-Motor propellers T5143S 6S and T5146 6S. Data includes throttle. thrust. voltage. current. RPM. power. efficiency. and operating temperature at various settings. Ambient temperature is 12°C.
KV1750 and T5147 6S motor performance data at various throttle percentages. including voltage. current. power. RPM. torque. and efficiency. Ambient temperature: 12°C. Motor surface temperature noted at 100% throttle.
T-Motor performance data for T5143S 6S and T5146 6S propellers. Includes throttle. thrust. voltage. current. RPM. power. efficiency. and operating temperature at various settings. Ambient temperature: 12°C.
KV1950 T5147 6S and T5150 6S motor performance data at various throttle percentages. including voltage. current. power. RPM. torque. efficiency. and ambient temperature (12°C). Motor surface temperature noted at 100% throttle.
T-Motor V2208 V2 performance data for T5143S 4S and T5146 4S propellers includes throttle. thrust. voltage. current. RPM. power. efficiency. and temperature details at various settings. Ambient temp: 12°C.
KV2450 T5147 4S and T5150 4S motor performance data at various throttle percentages. including voltage. current. power. RPM. torque. efficiency. and ambient temperature of 12°C. Motor surface temperature noted at 100% throttle.
T-Motor Velox contents: Motor x 1. Parts Bag x 1. Verify package completeness before use; contact online support if items are missing.
