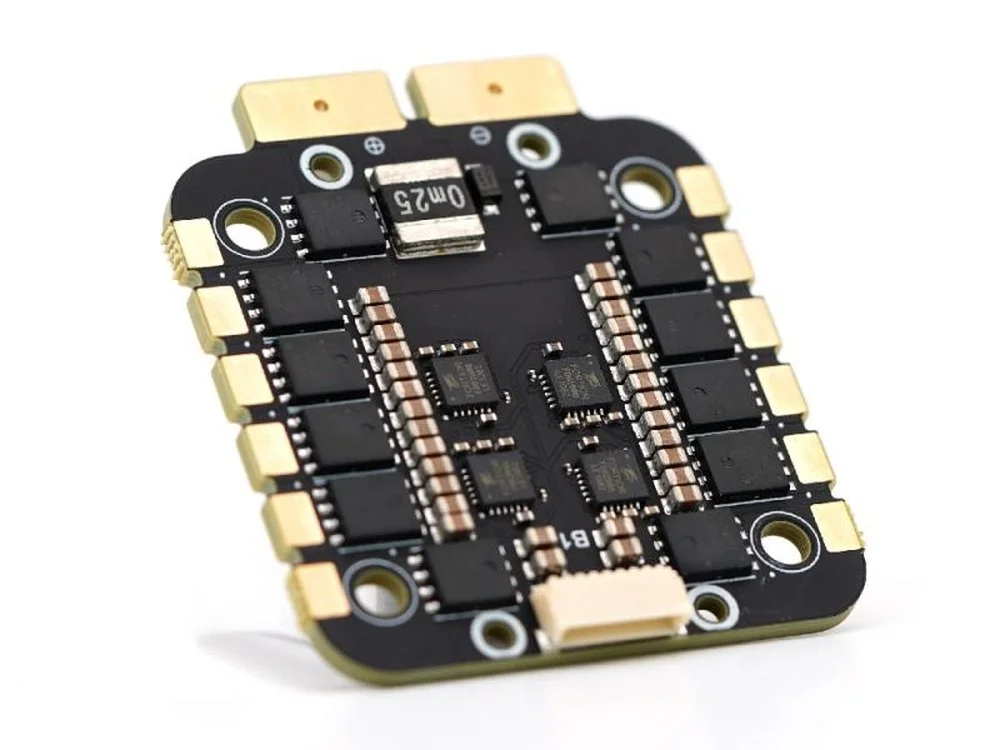

TBS Lucid 8S 60A 4-In-1 AM32 ESC

Description

The TBS Lucid 8S 60A 4-In-1 ESC is the latest in TBS product engineering. It is built for racing and freestyle applications and is developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

Featuring an 8-layer high current density board with twice the market average onboard capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power-to-weight density without the need for heavy heat sinks.

A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.

Specifications:

• ESC software:  AlkaMotors32 (AM32)
• ESC target:  tbslu8s4in1
• Rated current:  55A x 4, 60 seconds
• Peak Current:  85A x 4, 10 seconds
• Propellers:  Up to 11″, over 7″ requires good airflow
• Input:  3-8S Lipo
• Protocol:  Bi-directional Dshot 300/600), KISS ESC Telemetry
• ESC current port:  Yes
• BEC:  No
• Size:  50mm*42mm
• Mounting:  Gorilla-mount (39.5 x 16.0mm) & 30.5×30.5 mm
  or brackets for 20×20 mm
• Weight:  17.58g, 22g incl. brackets

Gorilla Mount

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.

Includes:
1x TBS Lucid 8S 60A 4-In-1 AM32 ESC
4x 2.2x4mm Standoffs
1x Aluminum Top Bracket for 20×20 FCs
1x XT60 Power Connector
1x 560uF 8S Capacitor
4x M2x12 Screws
4x M2x14 Screws (For 30×30 Mount)

Downloads

• Gorilla mounting pattern
• Frame developer pack for Gorilla mounting pattern
• AM32 Online Configurator
• AM32 Firmware
• TBS Lucid Manual
