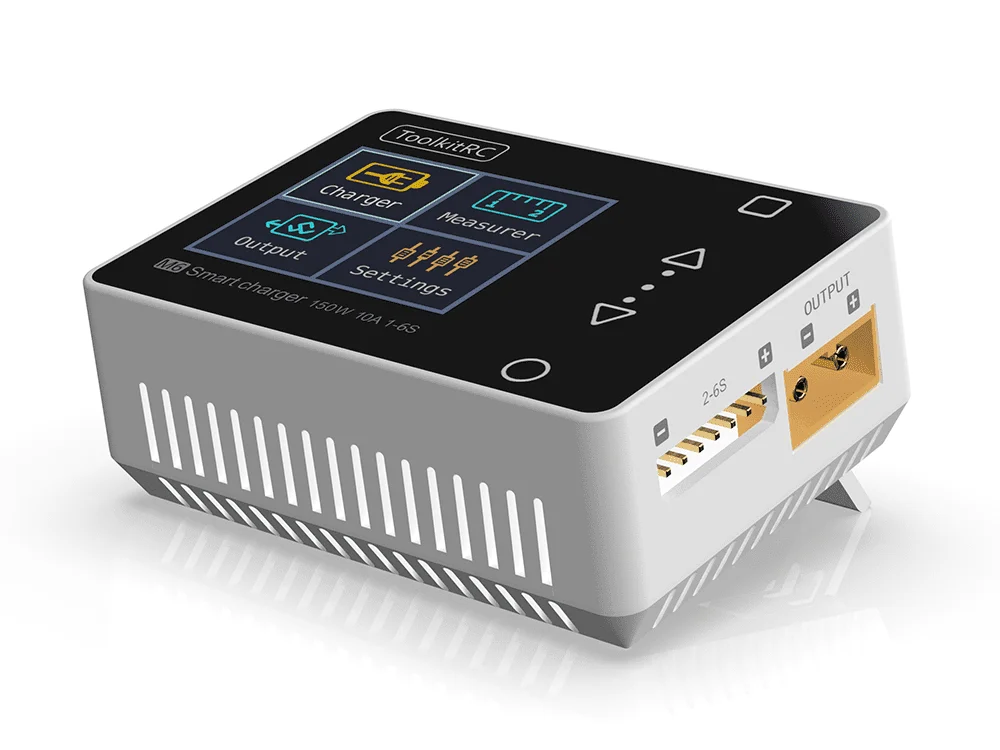

ToolkitRC M6 150W 10A Multi-function Pocket Charger

Description

The ToolkitRC M6 is the world’s smallest 150W color screen charger! With a 150W and 10A Charger at its heart, the M6 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control.  Super useful on your bench and perfect for your flying bag.

Specifications:

• Lithium battery cut-off voltage can be set (TVC function)
• Measure battery voltage, internal resistance, balance
• Measure PWM / PPM / xBUS signal values, Accuracy 1ms
• Output PWM / PPM / xBUS standard signal, Accuracy 1ms
• Customizable 1-28V constant voltage, 1-10A constant current
• Charge the drone battery, activate and charge.
• Multi-language optional
• USB [email protected] Output，for Mobile devices
• Udisk firmware upgrade (Slave device)

Charger:

• Input voltage:  7.0-28V  @MAX 12A
• Type of battery:  Lipo  LiHV  LiFe Lion @1-6S
•                               NiMh @1-16SPb @1-10S
• Charge power:150W @MAX 10A
• Discharge power:  150W  @MAX 10A Recycle mode
•                               8W @ 2A Normal mode
• USB: 2.1A @5.0V  or  Upgrade
• Dimensions:  68*49*26 mm
• Weight:80g
• LCD: 1.8inch TFT RGB, 160*128 Pixel

Measurement:

• PWM:  880-2200us @20-400Hz
• PPM:880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Voltage: 1.0-5.0V @1-6S
• IR: 10-99mR @1-6S

Output:

• PWM:  500-2500us @20-1000Hz
• PPM:880-2200us*8CH @50Hz
• SBUS: 880-2200us*16CH @74Hz
• Power: 1-10A  @1-28V Mode:CC+CV

Includes:
1x ToolkitRC M6 150W 10A Multi-function Pocket Charger

Optional XT60 to Alligator Clip Power Supply Cable

Optional ToolkitRC ADP180 Power Supply
