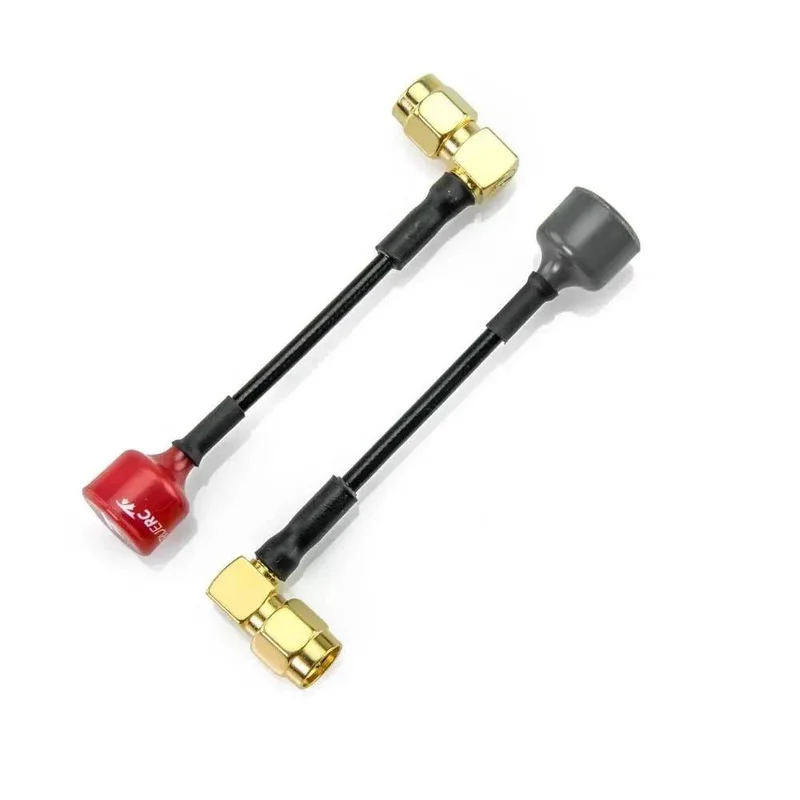

TrueRC Singularity 5.8GHz Premium SMA 90 Degree FPV Antenna – Choose Polarization / Length

Description

The singularity 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still. It is the smallest and lightest 5.8GHz CP antenna ever made.

Specifications

• Gain: 1.9dbic
• Polarization: RHCP (Red) or LHCP (Grey)
• Cross-Polar Rejection: -15 to -30dB (1.9%)/
• Bandwidth: 5.6GHz-6.0GHz
• Radiation Efficiency: 99%
• SWR: <=1.5:1
• Weight: 1.03g to 3.55g depending on configuration
• Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
• Length: Long (120mm), Regular (62mm)
• Cable: RG405, RG178, 1.13mm
• Connector: True-SMA/90

Useful 3D Prints

• Rotor Riot HD1 mount
• iFlight Nazgul XL5V5 mount
• Lumenier QAV-S Mini Antenna Mount
• Carnage/Venom mount
• AlphaRC Fi-115 mount

Includes

1 x TrueRC Singularity 5.8GHz SMA 90 Degree Antenna – Choose Polarization / Length
US. Pat. 10,804,618Can. Pat. 2968566
