Description

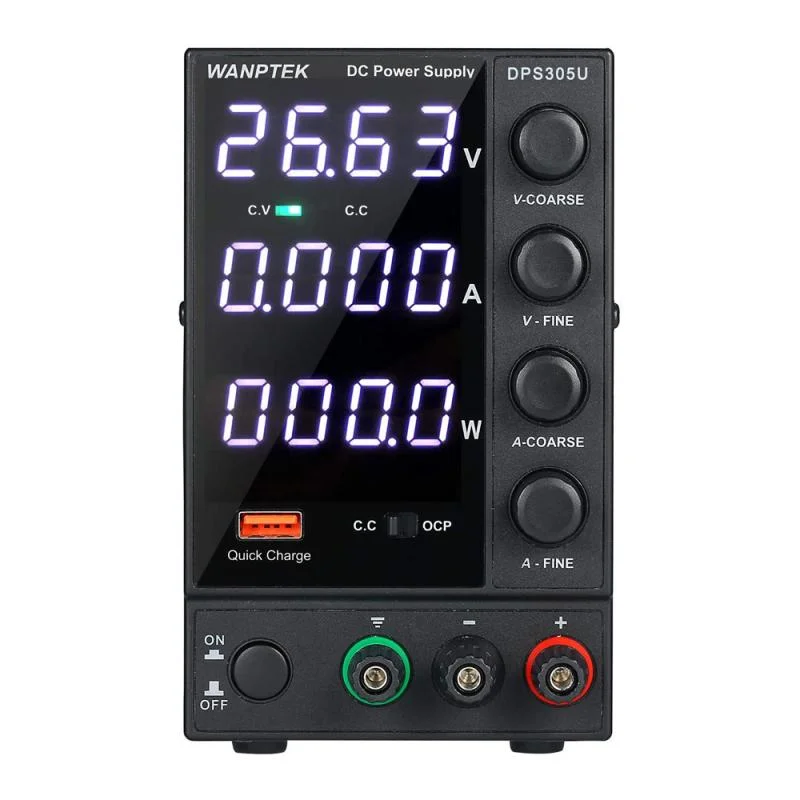

WANPTEK DPS305U 5A 150W SWITCHING DC POWER SUPPLY AC 115V/230V
SPECIFICATIONS:
- Plug Type: US
- Material: Aluminium alloy
- Model: DPS305U
- Output Voltage: 0～30V
- Output Current: 0～5A
- Output Power: 150W
- Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
- Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
- Working Temperature: 0~40℃; Humidity: <80%RH
- Storage Temperature: -10~70℃; Humidity: <70%RH
CV:
- Voltage Stability: ≤0.1% ± 3mV
- Load Stability: ≤0.1% ± 3mV
- Ripple Noise: ≤20mVrms (effective value)
CC:
- Current Stability: ≤0.1% ± 3mA
- Load Stability: ≤0.2% ± 3mA
- Ripple Noise: ≤5mArms (effective value)
- Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery
- Display: Four-digit digital tube, three-window display: voltage, current, power
- Display Accuracy: 0.5% ± 3 digits
- Display Resolution: voltage 00.01V; current 0.001A
- Fuse: 2A
- Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
- Item Weight: 1571g / 55.42oz
- Package Weight: 1737g / 61.29oz
- Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in
PACKAGE LIST
- 1 * DC Power Supply
- 1 * Power Cord
- 1 * Alligator Clip Line
- 1 * User Manual (English)
