Description

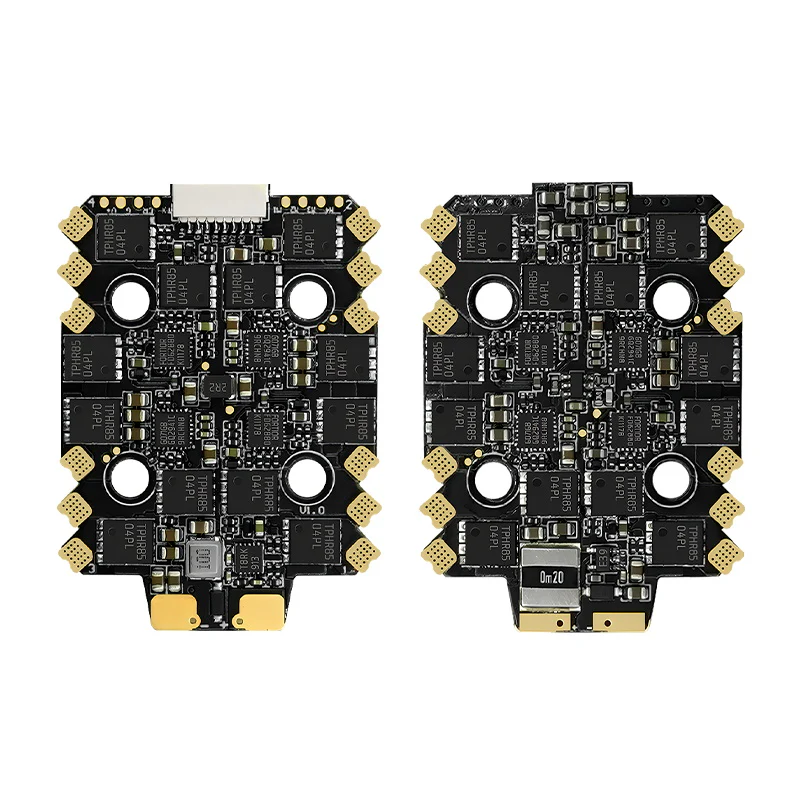

Sequre E70 G1 ESC (AM32)
SEQURE H743 & E70 G1 Review Video:
Product Description:
(1) STM32G071 high-performance processor, using BLHeli_32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
(2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
(3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
(4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
(5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
(6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
(7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
(8) 20*20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.
Parameters of Product:
| Model | E70 G1 |
| Processor | STM32G071 |
| PWM Frequency | 16KHz-128KHz |
| Working Voltage | 2-8S Lipo |
| Continuous Current | 70A |
| Peak Current | 150A |
| Support Protocol | Dshot600/300/150,Oneshot,Multishot,PWM |
| Firmware Version | SEQURE_G071_01_Pro_4in1_Multi_32_100 |
| Telemetry Return | Support |
| Galvanometer | YES |
| BEC | NO |
| Mounting Hole Spacing | 20x20mm, Φ4mm/M3 |
| Product Size | 50.5*36*6mm(L*W*H) |
| Product Weight | 15.8g |
